M57 MOUNTING + ADAPTERS

Collection information

M57 SWAP LAND ROVER DEFENDER  MOUNTING AND ADAPTERS

8 products

8 products

Quick view
HOUSE OF TORQUE
M57 6/8HP to LT230 adapter
4WD driveline conversion
from $2,390.00
View part
Quick view
KINGPIN Fab
M57 wide-block adapter & mount kit
MT82 · TDCI Puma
from $4,400.00
View part
Quick view
KINGPIN Fab
M57 AC conversion bracket
M57N / M57N2 options
$360.00
View part
Quick view
KINGPIN Fab
Pre-Puma LT230 mounts
Bolt-in mounting kit
from $390.00
View part
Sale
Quick view
KINGPIN Fab
M57N2 & ZF mount kit
TDCI Puma
$1,026.00 $950.00
View part
Sale
Quick view
KINGPIN Fab
M57N & ZF mount kit
TDCI Puma
$1,026.00 $950.00
View part
Quick view
KINGPIN Fab
M57 chassis engine mounts
300Tdi / Td5 applications
from $275.00
View part
Quick view
KINGPIN Fab
E70 M57N2 PAS pump kit
Pump & relocator bracket
$875.00
View part

House of Torque ZF 6HP / 8HP to LT230 Adapter Kit

$2,699.00
/
FITMENT
Vehicle Land Rover LT230 conversion applications
Engine BMW ZF 6HP26X / 6HP28X / 8HPX transmission
Connects supported BMW X-drive/4WD ZF transmissions to an LT230. Optional TDCi Defender transmission/transfer mounts are designed for use with this adapter.
Tax included. Shipping calculated at checkout.

House of Torque ZF 6HP / 8HP to LT230 Adapter Kit

Connect selected BMW four-wheel-drive ZF 6HP and 8HP transmissions to the Land Rover LT230 transfer case.

Transmission compatibility

  • ZF 6HP26X
  • ZF 6HP28X
  • Compatible 8HP X-drive / 4WD variants

Key features

  • 110mm black-anodised 6061-T6 aluminium adapter
  • Hardened steel drive shaft
  • Continuous centre-tube design to maintain gearbox-to-LT230 concentric alignment
  • LT230 oil seal included
  • Optional complete bolt kit

Optional TDCi / Puma mounts

For Defender TDCi chassis conversions, an optional transmission / transfer-case mounting kit is available for use with this adapter.

The mount kit includes:

  • Left-hand transmission mount
  • Right-hand transfer-case mount
  • Isolation rubbers
  • M12 mounting hardware

Confirm your exact ZF transmission variant and conversion layout before ordering.

BMW M57 Wide Block - MT82 Adapter + MOUNT Kit – TDCI Puma

$4,400.00
/
Tax included. Shipping calculated at checkout.

Wide-block M57 compatibility

Supports all wide-block M57 variants, single or twin turbo: 304D2, 306D3, 306D4 and 306D5. All twin-turbo installations require a P38 steering-box conversion to allow engine fitment and avoid fouling the steering box.

Check the remaining chassis, gearbox and kit-specific requirements before ordering.

Compatible wide-block single- and twin-turbo M57 engines are supported. Twin-turbo installations require a P38 steering-box conversion for engine fitment. The specified wide-block and MT82 requirements still apply.

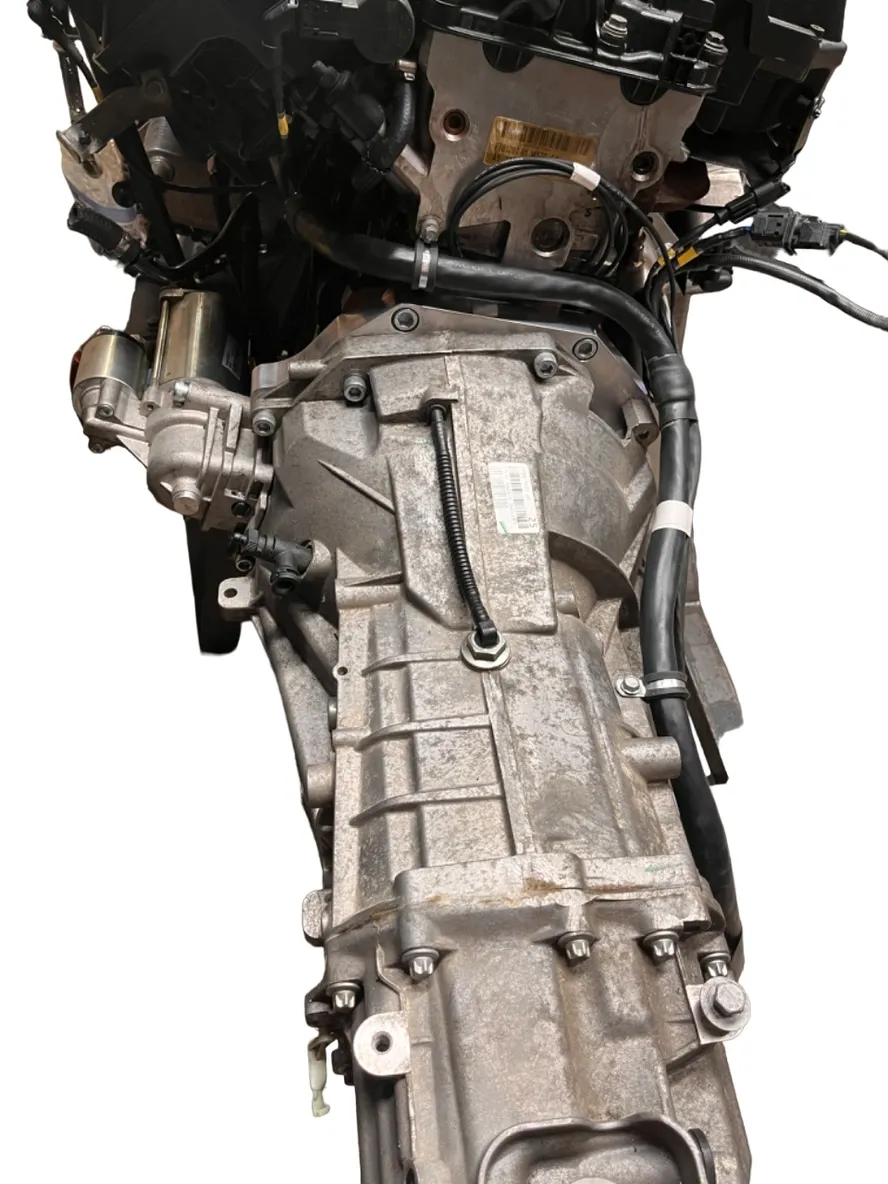

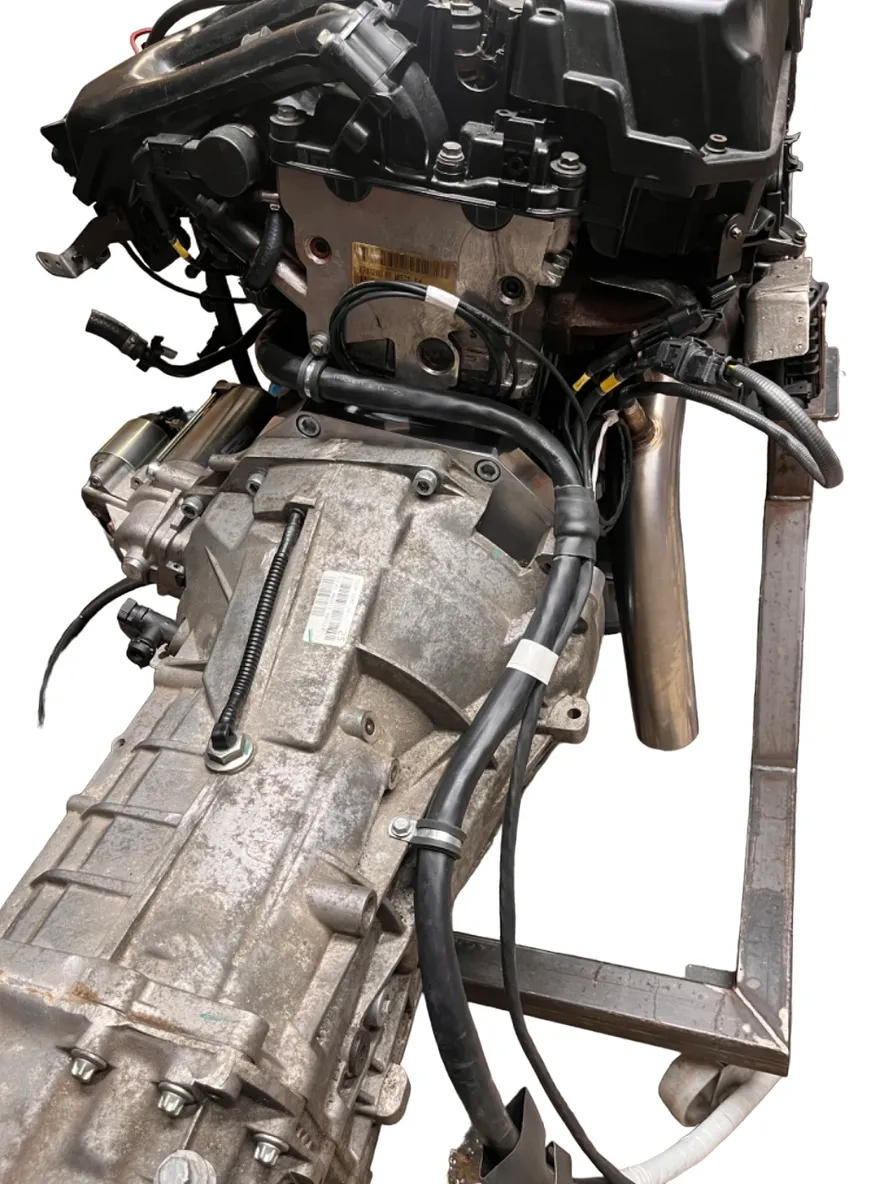

BMW M57N / M57N2 Wide Block to MT82 Adapter Kit – Defender Puma

Fitting a BMW M57 to your Puma Defender and keeping the six-speed manual? This gearbox adapter kit gives you the foundation for your manual M57 conversion. Bolt-in engine mounts for your TDCi Puma are an optional add-on; select them in the product options if required.

Designed for compatible M57N and M57N2 wide block single- or twin-turbo engines, the kit connects the BMW engine to your Defender’s MT82 six-speed manual gearbox.

STANDARD HD CLUTCH PARTS — EASIER SERVICING

The kit is designed around the Land Rover/Ford single-mass flywheel arrangement, using readily available Defender TDCi clutch components and factory clutch hydraulics. No custom clutch plate or specialist hydraulic setup required!

That means straightforward replacement parts when it’s time for servicing, without being tied to a one-off clutch assembly. It also removes the need to purchase an expensive replacement BMW dual-mass flywheel for your conversion.

NO CUTTING OF THE GEARBOX CASING

The adapter fits without cutting or modifying the MT82 gearbox casing, simplifying installation and avoiding the risk of mistakes when altering the housing.

Keeping the casing intact also helps preserve its suitability for a future exchange gearbox — a modified housing may not be accepted as an exchange core.

WHAT’S INCLUDED

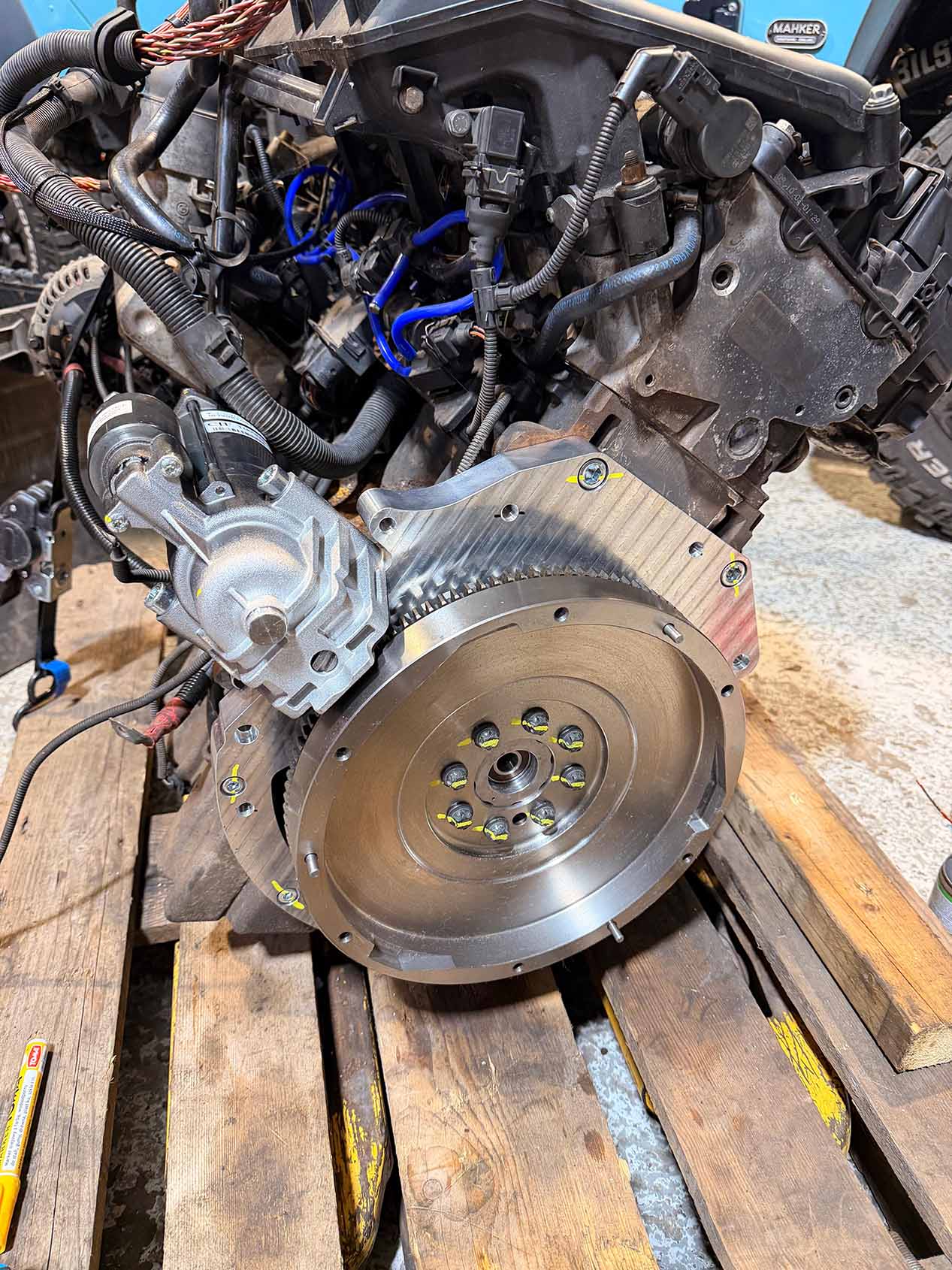

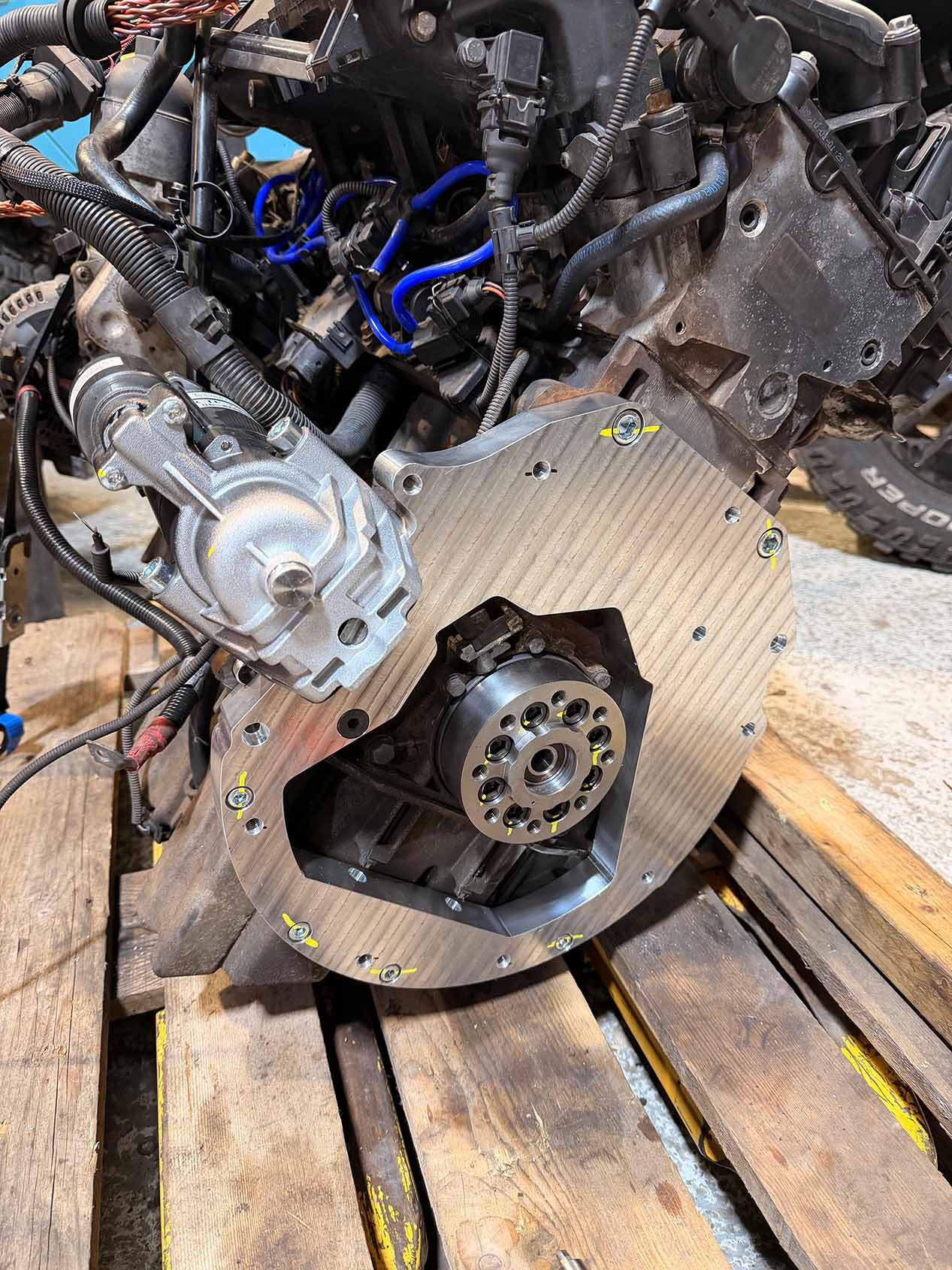

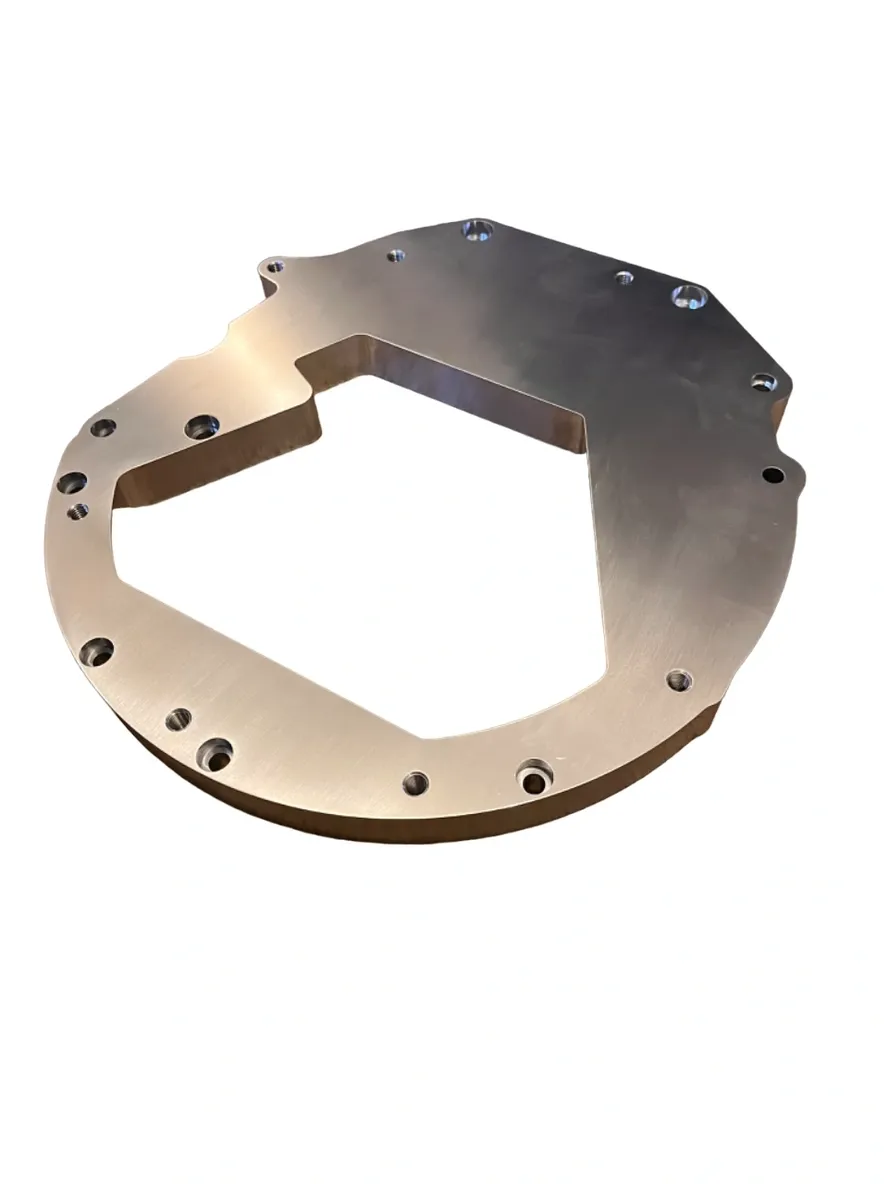

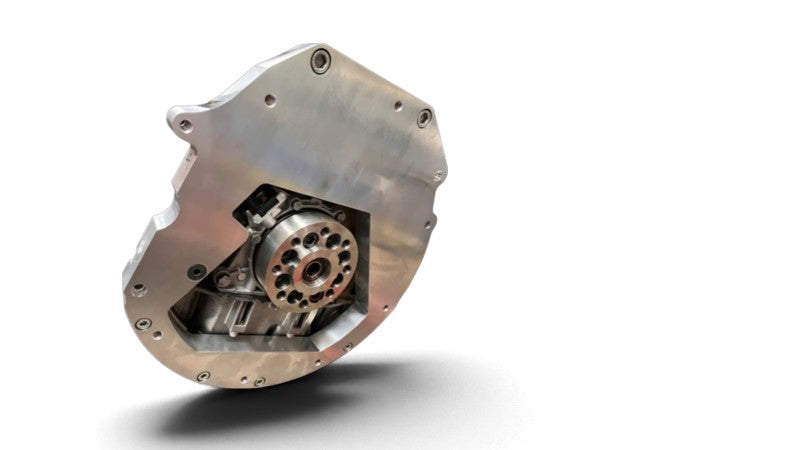

  • CNC-machined gearbox adapter plate, dimensionally checked using coordinate measuring equipment (CMM).
  • CNC-machined crankshaft-to-flywheel adapter, also CMM checked.
  • Alignment dowels for accurate positioning.
  • Additional adapter hardware and fasteners.

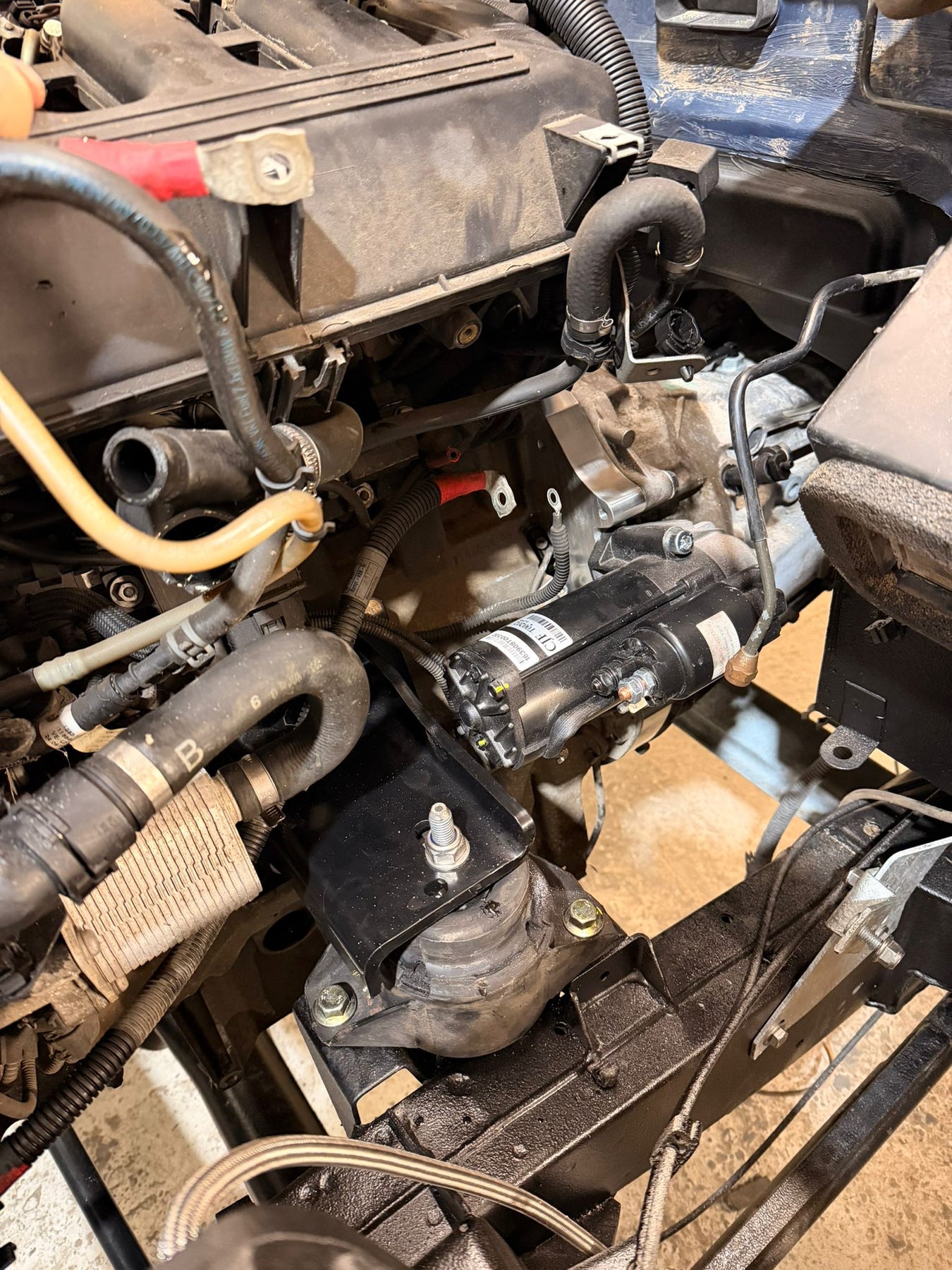

  • Remanufactured Bosch or Visteon starter motor.
  • Assembly instructions with an itemised, numbered parts list.

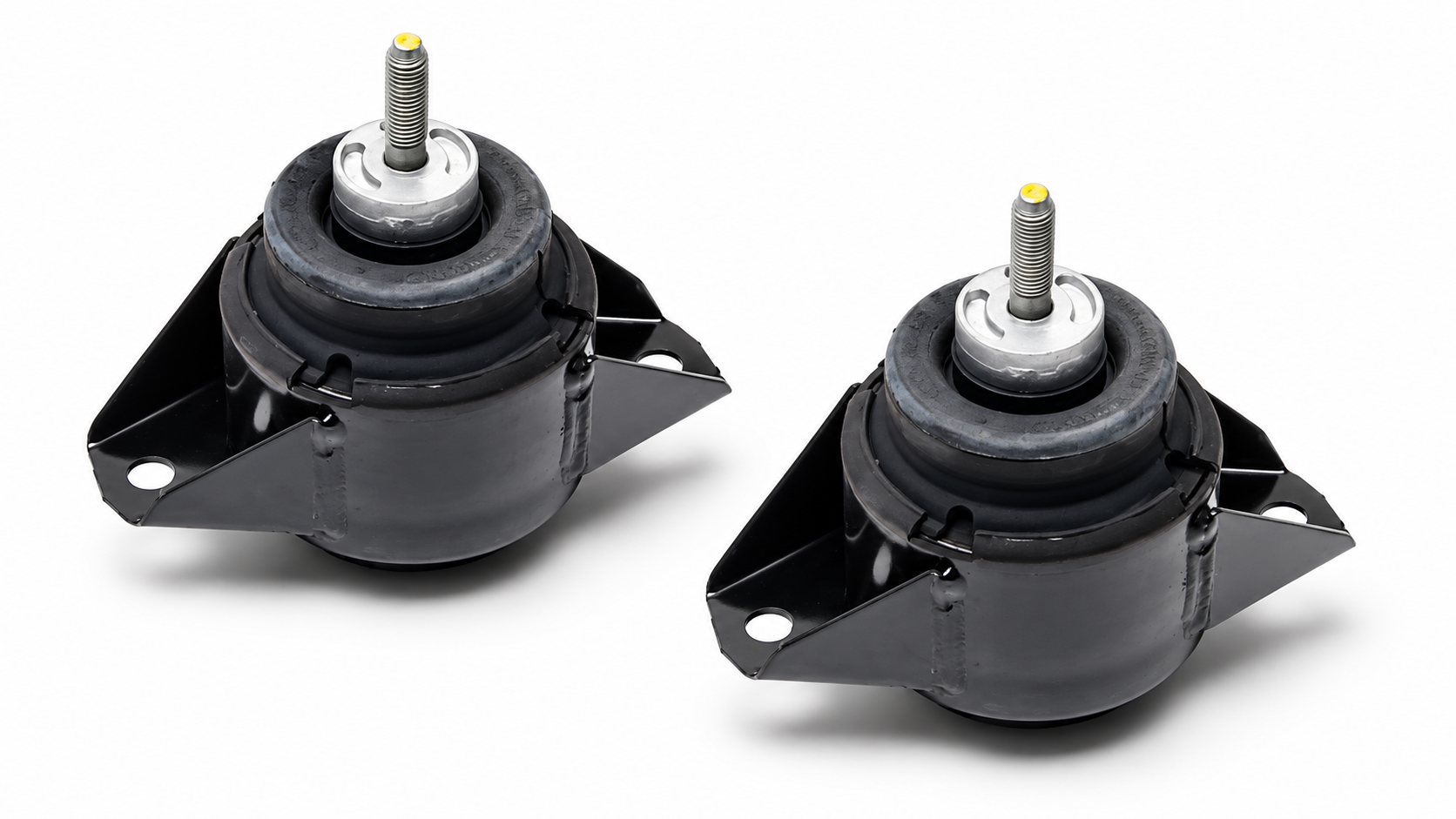

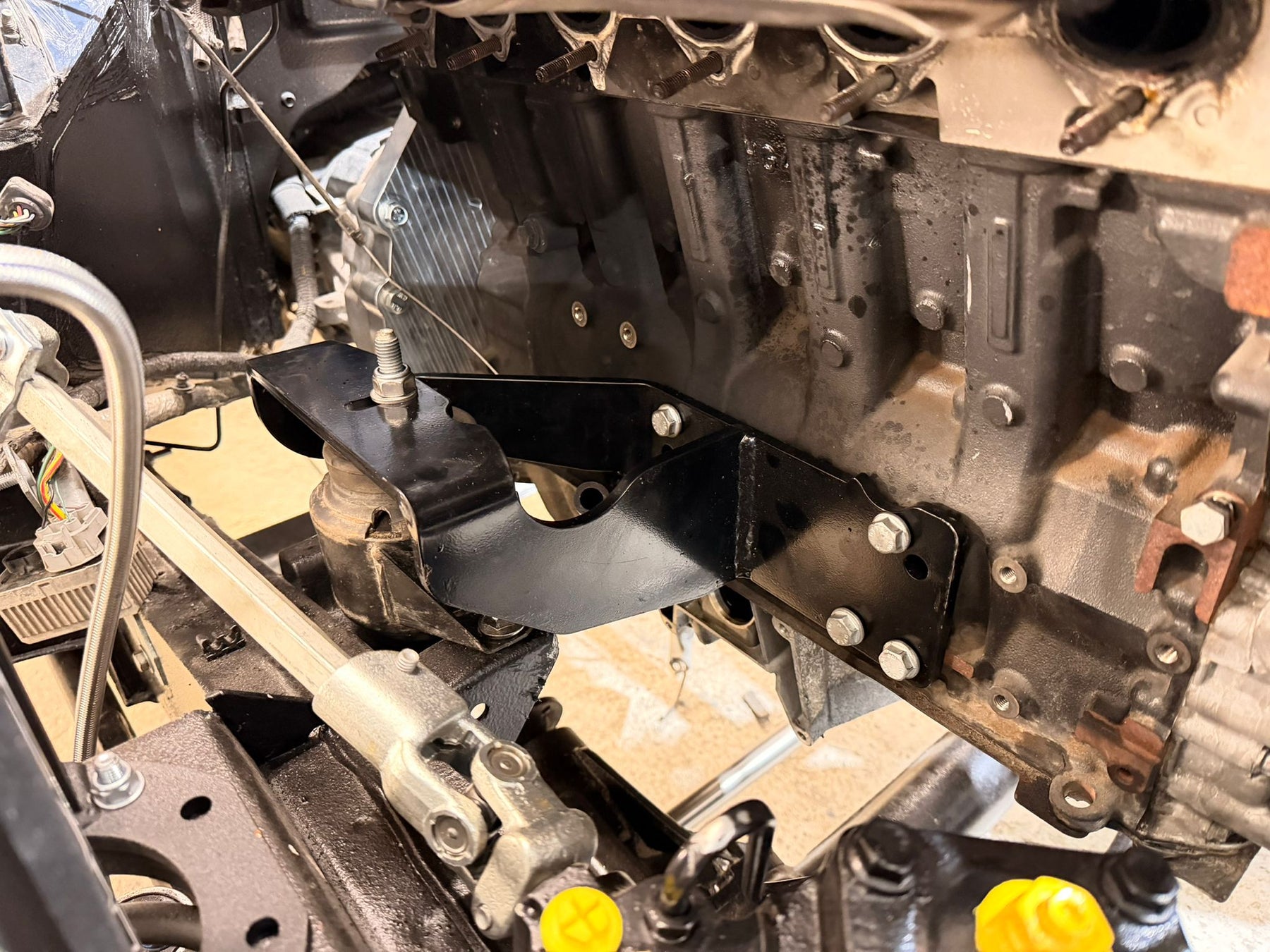

OPTIONAL BOLT-IN ENGINE MOUNTS

Add bolt-in engine mounts for your TDCi Puma Defender for $585 extra. Engine mounts are supplied only when the engine-mount option is selected.

OPTIONAL LOF CLUTCH & FLYWHEEL

Add a LOF clutch and flywheel for $1,830 extra — a convenient option if you’re replacing your clutch and flywheel as part of the conversion.

Package Price AUD
Adapter kit only — no engine mounts or clutch $4,400
Adapter kit + Puma bolt-in engine mounts $4,985
Adapter kit + LOF clutch & flywheel — no engine mounts $6,230
Adapter kit + Puma bolt-in engine mounts + LOF clutch & flywheel $6,815



FITMENT & INSTALLATION

  • For Defender 2.4 / 2.2 TDCi Puma models fitted with the MT82 six-speed manual gearbox.
  • Suits compatible BMW M57N / M57N2 wide block single- or twin-turbo engines. Check your engine’s block configuration before ordering, or email us to confirm.
  • Aluminium-block M57N2 engines require one M12 Helicoil installed in the engine block. Helicoil not included.
  • Uses the Land Rover/Ford single-mass flywheel arrangement.
  • Engine mounts are supplied only when the engine-mount option is selected.
  • Clutch and flywheel are supplied only when the LOF option is selected.

A NOTE ON DRIVETRAIN NOISE

A single-mass flywheel can transmit more drivetrain noise than a dual-mass setup. Almost everyone reports no additional neutral-idle gearbox noise during testing with a healthy MT82 running the correct oil.

Some additional noise can occur during low-speed manoeuvring, particularly with a higher-mileage transfer case. Depending on the condition of your drivetrain, additional noise may also be noticeable at higher engine speeds under heavy load...but then again, not in every case either!!!

The base kit covers the gearbox adapter components. Engine mounts and the LOF clutch and flywheel are optional extras, supplied only when selected. Additional parts and work are required to complete an M57 conversion.

Unsure which M57 you’ve got or which engine you need? Get in touch before ordering and we’ll help confirm the right kit for your build.

KINGPIN M57 Low-Profile A/C Compressor Bracket

$360.00
/
Tax included. Shipping calculated at checkout.

KINGPIN M57 Low-Profile A/C Compressor Bracket

Need more room on the right-hand side of your M57 engine bay? Move the A/C compressor closer to the engine block while retaining the BMW compressor.

For Land Rover Defender, Nissan Patrol, Toyota LandCruiser and other M57 swaps where compressor clearance is tight. Suitability depends on your engine, compressor and engine-bay layout; check the version and clearance requirements below.

The KINGPIN bracket replaces the factory BMW compressor bracket and moves the A/C compressor approximately 27mm closer to the engine, creating more clearance between the compressor and the Land Rover steering box.

Features

  • Designed from 3D scan data for accurate belt alignment
  • Powder-coated finish
  • Fixing kit included
  • Correct-length Gates Micro-V stretch belt supplied
  • Compatible with the House of Torque engine mounts supplied by KINGPIN Fab
  • Compatible compressor families include selected E53, E70, E83 and E60 applications

Choose the correct version

M57N version: moves the compressor inward by approximately 27mm. This version is for iron-block M57N applications and does not suit aluminium-block M57N2 engines.

M57N2 version: moves the compressor inward by approximately 27mm and approximately 30mm lower to improve intake-pipe / A/C-line clearance. This version can also be used on suitable iron-block M57N applications.

Defender clearance requirements

  • M57N2 setup: harmonic balancer to inside of passenger-side chassis rail must be approximately 260mm or less
  • M57N setup: harmonic balancer to inside of passenger-side chassis rail must be approximately 270mm or less

A stretch-belt fitting tool is required for installation.

Contact us before ordering if you are using a Pace Automotive Land Rover adapter.

Common questions before ordering

Can I use it in an M57-swapped Patrol or LandCruiser?

This bracket addresses compressor clearance at the engine. A Patrol, LandCruiser or other swap still needs an individual check of engine position, compressor type, chassis and steering clearance, belt alignment and A/C hose routing. The Defender measurements above are not a universal fitment test for other vehicles.

Patrol note: we have had a Patrol owner report that fitting the M57N version gave noticeably more clearance around the brake-line tab area. This may be useful on Patrol conversions where the standard compressor position is tight, but the result will depend on the engine position and mount kit being used. Send us photos and your mount setup if you want us to help check clearance before ordering.

What should I check before installation?

Identify your engine version and compressor before choosing the bracket. Have the required stretch-belt fitting tool available and check the current fitting instructions for your supplied kit before installation. If your engine casting or mounting arrangement differs, contact us before making modifications.

Not sure which version to choose?

Send KINGPIN your vehicle, engine version and compressor details, along with clear photos of the compressor side of the engine and the clearance you need. We can help check the application before you order.

M57 SWAP PRE-PUMA BOLT IN LT230 MOUNTS

$390.00
/
Tax included. Shipping calculated at checkout.

KINGPIN FAB - BOLT IN TRANSFER CASE MOUNTS FOR PRE-PUMA M57 + ZF AUTO SWAPS

  • Suit: 200tdi. 300tdi, County, Perentie 4x4, etc

SO...WHATS THE RUNDOWN ON THESE MOUNTS?...

These bolt in mounts replicate the TDCI Puma location for LT230/gearbox mounting...which is desirable for all M57 + ZF Auto Defender swaps

  1. Enables you to use our KINGPIN Fab Weld in TDCI replica Engine chassis mounts
  2. This in turn enables you to use the MUCH better TDCI style oil filled engine rubber mounts for your swap (WAY better/more refined than solid rubber mounts!)
  3. We also supply engine side mounts that with the above system, are bolt-in
  4. These mounts are designed from 3d scans, so PERFECTLY replicate TDCI Mounting
  5. These mounts pickup on 3 hols that exist in every Defender chassis each side. The 4th hole for reach mount must be drilled

CLICK  -HERE-  FOR OUR BOLT IN TDCI ENGINE MOUNTS!

CLICK  -HERE-  FOR OUR WELD IN TDCI STYLE CHASSIS MOUNTS

PLEASE NOTE - MOST STATES OF AUSTRA;LIA REQUIRE CRUSH TUBES TO BE WELDED INTO THE CHASSIS AS WELL - THESE ARE NOT SUPPLIED IN THE KIT

tags: Land Rover Defender M57 swap

Mount Kit M57N2 & ZF Auto to TDCI

Mount Kit M57N2 & ZF Auto to TDCI

$1,026.00 $950.00 Save $76.00
/
FITMENT
Vehicle RHD Land Rover Defender TDCi / Puma chassis
Engine BMW M57N2 aluminium-block with ZF 6HP26/28X or 8HP70X
Bolt-in kit for TDCi chassis using the current House of Torque 6HP/8HP-to-LT230 adapter. Donor-specific ancillary changes may be required. Not suitable for 306D4 twin-turbo models.
Tax included. Shipping calculated at checkout.

KINGPIN Fab · Fitment first

M57N2 mounts: match the donor engine before choosing your kit.

Wide-block M57 compatibility

Supports all wide-block M57 variants, single or twin turbo: 304D2, 306D3, 306D4 and 306D5. All twin-turbo installations require a P38 steering-box conversion to allow engine fitment and avoid fouling the steering box.

Drivetrain requirements

  • RHD Defender TDCI chassis.
  • ZF 6HP26 / 6HP28X / 8HP70X.
  • The 2025-version 6/8HP-to-LT230 adapter we stock.

Included

  • Engine and gearbox brackets.
  • Bolts and fixings.

Guide to engine variants and fitment with these mounts

Donor configurationFitment requirements
E90 M57N2 single turboFits with no modifications.
E90 M57N2 twin turboFits but requires a P38 steering-box conversion to avoid fouling the steering box.
E70 M57N2 single turboRelocate the E70 power-steering pump using our E70 M57N2 PAS Pump Relocator Kit. Also requires our M57N2 A/C Bracket.
E70 M57N2 twin turboRequires a P38 steering-box conversion to avoid fouling the steering box, plus our E70 M57N2 PAS Pump Relocator Kit.
E60 M57N2 single turboFits but requires our M57N2 A/C Bracket.
E60 M57N2 twin turboFits but requires a P38 steering-box relocation to avoid fouling the steering box.
E83 M57N2 single turboFits but requires our M57N2 A/C Bracket.
E53 M57N single turboRequires conversion to the later M57N2 V-band-style single-turbo setup. Browse turbo conversion parts. Complete conversion kits are also available—email us to enquire. Also requires our M57N2 A/C Bracket.

The brackets are bolt-in without cutting or welding the original chassis and using original propshaft lengths with the specified setup.

Plan your M57 swap with a $149 consultation →

Need help choosing the right parts?

Send your vehicle, engine, gearbox and parts already owned so we can check the right starting point.

Ask a product question →
Mount Kit M57N & ZF Auto to TDCI

Mount Kit M57N & ZF Auto to TDCI

$1,026.00 $950.00 Save $76.00
/
Tax included. Shipping calculated at checkout.

KINGPIN Fab · Fitment first

M57N mounts for a RHD TDCI Defender: important turbo notes.

Important: standard M57N 3-bolt turbo does not fit

This mount kit will not work with the standard M57N turbo in its standard location.

When using these bolt-in TDCI mounts with an M57N engine—most commonly the E53 X5 in Australia—you will need to convert to the later M57N2 turbo and exhaust-manifold setup.

We can supply complete conversion kits—email us to enquire—and individual parts to help complete the conversion. Browse turbo conversion parts →

Intended combination

  • Iron-block M57N engine.
  • RHD Defender TDCI chassis.
  • Compatible ZF automatic: 6HP26 / 6HP28X / 8HP70X.
  • The 2025-version 6/8HP-to-LT230 adapter we stock.

Included

  • Engine and gearbox brackets.
  • Bolts and fixings.

The mount kit is bolt-in without cutting or welding the original chassis and using original propshaft lengths with the specified combination. That does not remove the turbo and ancillary work above. Mechanical competence is required.

Need detailed conversion planning? View the $149 consultation →

Need help choosing the right parts?

Send your vehicle, engine, gearbox and parts already owned so we can check the right starting point.

Ask a product question →

M57 SWAP CHASISS ENGINE MOUNTS 300TDI/TD5 ETC

$275.00
/
Tax included. Shipping calculated at checkout.

Wide-block M57 compatibility

Supports all wide-block M57 variants, single or twin turbo: 304D2, 306D3, 306D4 and 306D5. All twin-turbo installations require a P38 steering-box conversion to allow engine fitment and avoid fouling the steering box.

Check the remaining chassis, gearbox and kit-specific requirements before ordering.

KINGPIN FAB - WELD IN ENGINE CHASSIS SIDE MOUNTS FOR PRE-PUMA M57 + ZF AUTO SWAPS

  • Suit: 200tdi. 300tdi, County, Perentie 4x4, etc

SO...WHATS DIFFERNET ABOUT THESE MOUNTS?...

These weld on chassis mounts are a direct replica of the TDCI Puma chassis mounts, which for a Pre TDCI Puma means a few thing worth noting:

  1. You are able to now use Bolt-in TDC Engine side mounts such as the House or Torque Mounts we stock
  2. This in turn enables you to use the MUCH better TDCI style oil filled engine rubber mounts for your swap (WAY better/more refined than sold rubber!)
  3. We also have largely  BOLT-In Mounts available also, that place your LT230 into the Puma position for a complete solution
  4. These mounts are designed from 3d scans, so PERFECTLY replicate TDCI Mounting
  5. Option to purchase 3d printed positioning jigs coming VERY soon

CLICK  -HERE-  FOR OUR BOLT IN TDCI ENGINE MOUNTS!

CLICK  -HERE-  FOR OUR BOLT-IN PRE=PUMA LT230 MOUNTS!

SOLD AS A PAIR

tags: Land Rover Defender M57 swap



DEFENDER E70 M57N2 PAS PUMP + RELOCATOR BRACKET

$875.00
/
Tax included. Shipping calculated at checkout.

BMW M57N2 (E70 X5 DONOR ENGINE) ASL PAS Pump & Relocation Bracket Kit – Defender

Fitting an E70 M57N2 engine into your Defender? This power steering pump and relocation bracket kit is designed to work with KINGPIN and House of Torque M57 + ZF automatic engine mounting systems, positioning the pump away from the chassis rail to provide the clearance needed for your conversion.

The kit combines a brand-new MEYLE power steering pump with a precision-machined, two-piece billet aluminium relocation bracket, while retaining your original BMW E70 power steering pump pulley.

WHAT’S INCLUDED

  • Brand-new power steering pump.
  • Two-piece billet aluminium relocation bracket.
  • Required mounting hardware and bolts.

FITMENT

Designed for BMW E70 M57N2 engines using KINGPIN or House of Torque M57 + ZF automatic engine mounting systems in Defender conversions.

Please note: Your original BMW E70 power steering pump pulley must be reused (and flipped in orientation), as well as the factory E70 std belt. Some factory bolts etc  are re-used...so dont throw them out untill the install is complete!

Compatibility with other engine variants or mounting systems should be confirmed before ordering.
