Not sure which suspension setup is right for your Defender, Discovery or Range Rover?

Every vehicle is different. Accessories, permanent weight, towing requirements, intended use, long travel setups, sway bars and existing suspension components all affect which springs, shocks and supporting components will work properly, and which parts need addressing from serious remote or technical offroad use

Free 15-minute initial call

We’re happy to provide an initial suspension and vehicle-setup phone call of up to 15 minutes at no charge.

This is generally enough to:

• Discuss your main requirements
• Answer basic product and compatibility questions
• Recommend a suitable starting point
• Determine whether you need a standard kit or even one of our own more complex kits listed on our website will suit... or if more detailed planning will be needed

Free calls must be booked in advance, and we’ll need your vehicle information beforehand so the available time can be used effectively.

Detailed Vehicle Setup Consultation — $149

For more complex vehicles—or customers wanting more detailed advice than can be covered during the free 15-minute call—we offer a comprehensive paid consultation.

This includes:

• Review of your existing vehicle and suspension setup
• Up to a 45-minute phone consultation
• Suspension recommendations based on your vehicle’s weight and intended use
• Advice regarding shocks, springs, sway bars, steering components, suspension geometry and supporting modifications
• Discussion of current and future vehicle upgrades
• A staged setup plan where appropriate
• Detailed follow-up email outlining the recommended direction and suitable products

Information we require

After purchasing the consultation, please email us the following:

• Vehicle year and model
• Current suspension and approximate lift
• Whether the factory sway bar/s are fitted
• Bullbar, winch, canopy, drawers and other accessories
• Normal permanent load
• Towing setup, if applicable
• Tyre size
• How the vehicle is mainly used
• Any current handling or suspension problems
• What you’re hoping to improve
• Approximate budget
• Clear photos of the vehicle and current setup

Which option do I need?

If you only need a quick product recommendation or have a straightforward question, please contact us first to arrange the free 15-minute call.

Choose the paid consultation if your vehicle has a more complex setup, you require a complete or staged suspension plan, or you’d like additional time to properly work through the available options.

There is absolutely no obligation to purchase the paid consultation—the free initial call may be all you need.

KINGPIN HD Rear Coil Retainer System

Heavy-duty top-and-bottom rear coil retention for Land Rover suspension builds.

This system retains the rear spring at both ends rather than allowing it to dislocate during articulation. On front-radius-arm Land Rovers, rear spring retention can be used as part of a balanced suspension setup to improve rear roll stiffness and vehicle stability while still allowing useful articulation.

Why retain the rear coils?

• Helps keep the rear spring controlled through articulation
• Supports a more predictable rear suspension response
• Can encourage the front suspension to contribute more effectively to articulation
• Avoids loose or displaced rear coils at full droop

Kit includes

• Upper rear coil retainers
• Lower rear coil retainers
• High-tensile fitting hardware

Select the correct vehicle and configuration from the options above. Contact us if you need a mixed or partial kit that is not listed.

KINGPIN Rear Pin-Conversion Shock Mounts

Convert the rear of your Land Rover to a pin-to-pin shock arrangement and open up better long-travel shock options.

Applications

• Defender 90 / 110 / 130
• Discovery 1
• Range Rover Classic

Why use a pin-conversion mount?

• Allows use of pin-to-pin rear shocks
• Designed around lifted and long-travel Land Rover suspension setups
• Improves shock-bush alignment at common lifted ride heights
• Suitable for selected long-stroke remote-reservoir shock combinations
• Manufactured in-house from Australian materials

On the matched Defender setups we commonly build, these mounts can accommodate long-stroke rear shocks without automatically requiring extended rear bumpstops. Final shock length, spring height, bumpstop clearance and tyre clearance must still be checked on the actual vehicle.

OVER 32 CONFIGURATIONS AVAILABLE!

***We will contact you withing 24hrs of your order to advise the correct height turret we will supply***

Also can supply with or without an inbuilt dislocation cone.

*ALL TURRETS OFFSET THE TOP MOUNT OF THE SHOCK 10MM REARWARD.*

*WE NOW ALSO SET THE INBUILT DISLOCATION CONE FORWARD IN ANGLE TO BETTER CLEAR THE SPRINGS ON THE REAR SIDE - (you can see this on the product pic if you look closely)

HD FRONT SPRING LOWER COIL RETAINERS - Pair

• 5mm lazercut AUSSIE steel
• Suit Discovery 1, All Defenders, & RRC
• 3 stage POWDERCOATED coat, BLAST-PRIME-COAT

GWYN LEWIS +25mm BUMPS!

Bump stops do not restrict articulation as many think, as the axle articulates and the angle increases....the coil spring and the bump stop comes away from the axle, you would have to have very long bump stops to restrict articulation.

These Bump Stops are universal fitment, the mounting plate is a heavy duty 5mm plate with 6 mounting holes so you can fit to Front or Rear.

SOLD AS A PAIR

KINGPIN Fab Fuel Filter Relocation Bracket

Needed when you fit ANY brand pin to pin rear shock mount to Td5 & Puma D90, D110 & D130 Defenders

Comes with fitting kit

Again we have gone above and beyond with our HD Turret Retainer Rings

We have had countless requests for these as the std factory ones often break studs as they age, and even more so with quality shocks with firmer tunes than the factory items.

The usual offerings use a 4mm laser cut plate - we use 6mm, just to give that little bit more

Our studs are threaded into the flange ring itself, and then plug-welded from behind

***THESE ARE NOW COATED IN GOLD ZINC - NOT POWDERCOATED***

WANT THE NEATEST SOLUTION TO MOUNTING YOUR SHOCK RESI'S? - LOOK NO FURTHER...

• Universal front shock turret resi mount

• will require drilling two small hole sin the front face of the shock turret
• For Superior shocks - use the small nuts and bolts in the resi fitting kit to secure this bracket to the front face of the turret
• Also use the rubber half moons supplied in the Superior resi fitting kit
• Can also be used for KING & Fox 2.0 smoothies

HOSE IS ROUTED TO THE REAR OF THE TURRET WITH THIS MOUNTING KIT - WHERE AS WITH THE UNIVERSAL SUPERIOR KIT THE HOSE IS ROUTED TO THE FRONT

WANT AN EASY NEAT SOLUTION TO MOUNTING YOUR SHOCK RESI'S? - LOOK NO FURTHER...

• Puma's - this bracket uses the supplied bolts to fit right up to existing threaded bosses.
• Perentie/pre-Puma Defender/County - you will need to use M10 Nutserts/Rivnuts to fit
• Laser cut and 3-stage powdercoated
• NOT suitable for Disco1, Disco 2 etc
• Also designed for use when the resi cannot be mounted on top of a upper spring retainer plate - if you don't have retainers in your suspension kit (ideal for our OUTBACK TOURER KIT)

 This kit is to convert a STRAIGHT Land Rover rear Swaybar for OFFROAD use!

KINGPIN FAB'S OWN SWAYBARS!

Manufactured with the highest quality Australian spring steel -

THESE BARS ARE DIRECT BOLT-IN HD UPGRADES - COMES WITH SUPERPRO BUSHES!

• 33mm diameter FRONT (up from the std 26mm)
• 25mm diameter REAR (up from the std 19mm)

Please reach out before ordering to check stock levels or potential wait times as we keep limited stock and may not always have what you want ready to go immediately

IF YOU'D LIKE TO ADD NEW SWAYBAR LINKS TO YOUR ORDER CLICK HERE

KINGPIN FAB'S OWN SWAYBARS!

Manufactured with the highest quality Australian spring steel

• Available in the sought after 19mm STRAIGHT format to suit our Offroad Swaybar Conversion kit
•  25mm HD STRAIGHT version - again to suit our Offroad Swaybar Conversion kit


Please reach out before ordering to check stock levels or potential wait times as we keep limited stock and may not always have what you want ready to go immediately

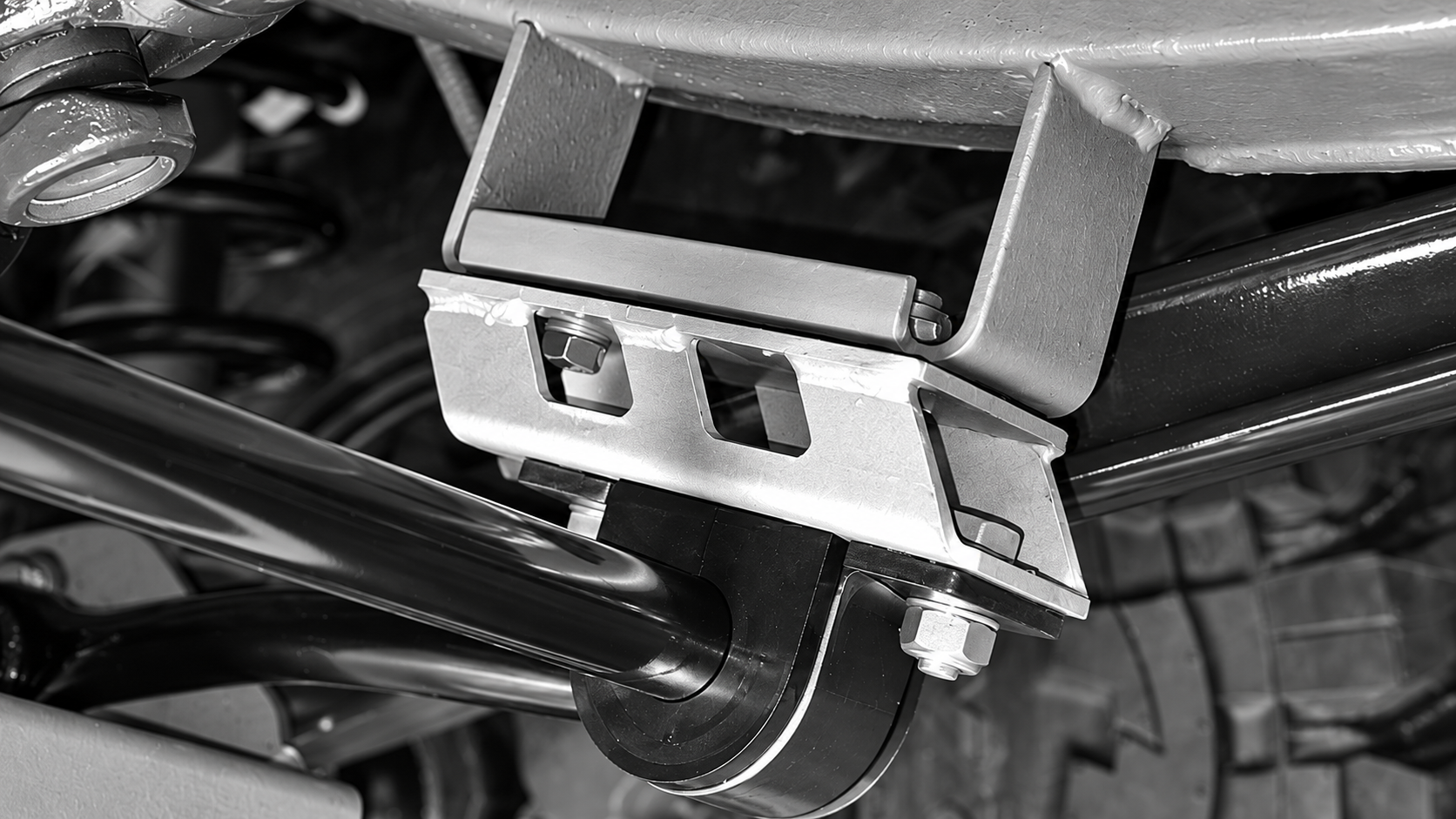

This FRONT swaybar spacer we have made to space the swaybar 55mm Directly down on the vertical plane.

This is ideal for those who run a one of our Gwyn Lewis Mega HD front drive shafts, AND any shock longer than factory open length of 550mm open, on a 2" lift, as in those cases our regular 25mm spacers are not quite enough.

Sold in pairs

3 STAGE BLAST-PRIME-POWDERCOAT

SUIT: All Defender, Discovery 1, RRC etc

25mm SWAYBAR SPACER MACHINED FROM BILLET ALLOY

• Suit FOUR hole rear swaybar brackets only (2 hole rear swaybar brackets use our front swaybar spacers)
• Sold as a pair
• includes fitting hardware

Used for fitting most eye mount shocks to the front of a D2

• Bolt hole is 30mm from centre to bottom of the mount surface
• 12mm bolt hole
• 44mm mount width
• Comes with ONE pair of crush tubes to do the axle end mount
• Optional to get another pair of crush tubes for the turret/chassis end

LOOKING TO SWAP EITHER PATROL GU or GQ DIFFS INTO YOUR LANDY?

• Front & rear spring seat brackets (fronts you trim to size IF needed)
• Rear axle shock mounts
• Rear axle trailing arm mounts
• Rear axle A.Frame Balljoint tapered weld in boss
• Rear axle A.Frame Balljoint boss housing (to weld the boss into)(will need to trim the legs to suit your application/diff housing). This also includes a 'back' which is NOT seen in the pictures for this listing

ALL parts are supplied as a DIY kit - NO WELDING HAS BEEN DONE FOR YOU.

We can weld up the rear A.frame Boss & housing for you, as well as the trailing arm mount tabs (please select this on the options)

OTHER BITS FOR YOUR CONVERSION:

• Custom prop shafts (we can do these after they are under the truck and you can confirm measuments with us) $1560each (ULTRA HD 20.20 Jointed units)
• Custom Drag link Nissan one end and Rover the other. (we can do this after you confirm length measuments with us when the diffs are under the truck) $375 (KINGPIN Fab Solid chromoly unit)
• Custom Panhard rod  $375

WANT US TO FIT THE BRACKET KIT TO YOUR HOUSINGS?

• Remove std brackets and fit new brackets (front shock/spring plate mounts, rear shock mounts, rear trailing arms mounts, and rear a.frame balljoint mount – approx. $1300

WE CAN SUPPLY PART KITS IF YOU ONLY REQUIRE CERTAIN PARTS FROM THIS KIT.

Looking to fit a set of our custom Radflo shocks, some Fox shocks, or KING shocks to the front of your rig?

• Custom heights available
• 6mm laser cut Aussie steel
• Designed for a 1.5"/38mm mount width shock, with 1/2" bolt
• We can supply to suit a shock with a 1.5"/38mm mount width, but a 3/4"/19mm ID rubber bush (we use crush tubes for the rubber bush to reduce down to 1/2" bolt.
• FOX and KING will require a pin to eye mount adapter (we can also supply)
• FOX and KING will need to be 1.5" mount width spherical bearing w/spacers. (we can source new spacers if needed (if you have your own shocks that are 1.25" mount width)
• Radflo from us are custom made with pin mount bottoms for us so we can provide lower turrets (better for packaging in your engine bay) that if we are making for the equivalent size Fox or KING
• Inbuilt dislocation cone. (We can also make these without the cone)
• You will most likely need to move your header tank, or re-rout hoses depending on your model and year rig
• If you place an order online without first contacting us - we will contat you withing 24hrs to conform your application and height required.
• These turrets are made to order w/3-5week lead time in most cases.

LOOKING TO FIT AN EYE MOUNT SHOCK (FOX, KING, RADFLO, ETC) BUT NEED A SPRING RETAINER ALSO?

KINGPIN FAB FRONT LOWER EYE MOUNT SHOCK ADAPTER & SPRING RETAINER COMBO

• 38mm/1.5" Mount width
• 24mm high to bolt centre
• 1/2" Bolt size

Looking to fit a set of our custom Radflo shocks, some Fox shocks, or KING shocks to the front of your rig?

• SUIT 12" CUSTOM RADFLO, OR 12" FOX or KING SHOCKS
• Custom heights available (ADDITIONAL FEE FOR DEVIATION FROM STD SIZING)
• 6mm laser cut Aussie steel
• Designed for a 1.5"/38mm mount width shock, with 1/2" bolt
• Our Radflo custom shocks are supplied with a 1.5"/38mm mount width, but a 3/4"/19mm ID rubber bush (we insert crush tubes into the rubber bush to reduce down to 1/2" bolt.
• FOX and KING will require a pin to eye mount adapter for the axle end mount (we can also supply) (different misalignment spacers from those that came with your shocks may be required also see below)
• FOX and KING will need 1.5" mount width spherical bearing w/spacers. (we can source new spacers if needed (if you have your own shocks that are 1.25" mount width)
• If you place an order online without first contacting us - we will contact you within 24hrs to conform your application and height required.
• These mounts are made to order w/3-5week lead time in most cases.

Transplanting some Patrol Diffs under your Land Rover?

Rears are made from 4mm laser cut steel plate,

Fronts are made from 5mm laser cut steel plate

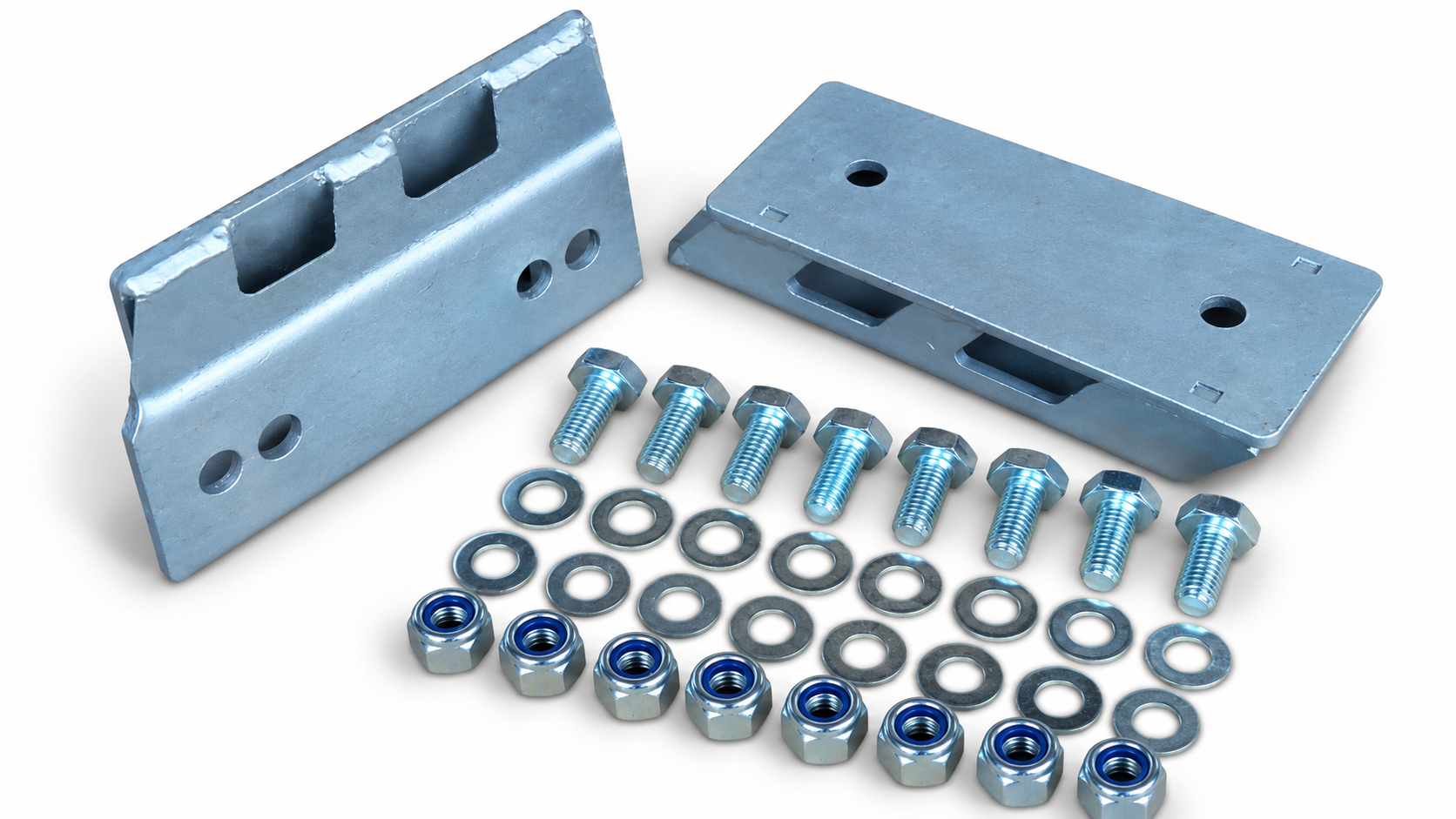

Fits:- All Defender 90, 110, 130 FRONT Anti Roll Bar 2 Bolt Fixing, also Discovery 1, RRC.

Kit Includes:
2 x 37mm spacers
1 x Complete Bolt Kit

1. The main reason for an anti roll bar spacer to be fitted is to lower the anti roll bar, this spacer will lower the front anti roll bar by 37mm. If +2inch shock absorbers or long travel shock absorbers are fitted to the vehicle and you would like to fit a front anti roll bar for more stability then these spacers will be needed to lower the anti roll bar to prevent the propshaft from touching the anti roll bar on axle drop.
2. This anti roll bar spacer is two-positioned, the reason for this design is that anti roll bars are of different lengths, some have been made longer along with front castor correction suspension arms. Because of the different length bars, it causes the anti roll bar drop links to hit the axle, however by fitting our anti roll bar spacers, you can move the rear bush mounting point back by either 15mm or 30mm. This then allows more room for the anti roll bar drop links to move and flex.
