KINGPIN FAB

Heavy-Duty Rear Coil Spring Retainers for Land Rover

KINGPIN Fab upper and lower rear coil spring retainers for selected Defender, Discovery 1 and Range Rover Classic applications. The retainers help keep rear coils located during suspension articulation and full droop.

Vehicle fitment

• Defender 110 and 130
• Defender 90
• Discovery 1
• Range Rover Classic

Select the vehicle option that matches your Land Rover. The kit is powder coated. Choose the helper-airbag option to suit your setup.

Kit includes

• Upper rear coil retainers
• Lower rear coil retainers
• High-tensile fitting hardware

Contact us before ordering if you need a mixed or partial kit that is not shown in the options.

Superior Engineering Custom-Valved Remote Reservoir Shocks

These shocks are not supplied out of the box and sent straight to you. KINGPIN Fab re-valves and tunes them specifically for Land Rover applications, based on vehicle weight, suspension travel and intended use.

We modify both the shim stack and piston setup where required to achieve the damping characteristics we want for the vehicle.

Price is per pair.

Why KINGPIN custom-valved?

• Vehicle-specific damping rather than generic off-the-shelf valving
• Remote reservoir for increased oil volume and cooling capacity
• 8-stage compression adjustment
• 20mm hard-chromed shaft
• Fully rebuildable and serviceable
• Multiple travel lengths available

Length guide

Nominal size	Closed	Open	Travel
8.5"	327mm	550mm	223mm
9.5"	356mm	596mm	240mm
10"	362mm	620mm	258mm
10.5"	372mm	640mm	268mm
11"	390mm	660mm	270mm
11.5"	397mm	690mm	293mm
12"	410mm	710mm	300mm
12.5"	420mm	736mm	316mm
13"	450mm	776mm	326mm

Lead time and sizing

If the recommended size is in stock, allow approximately one week for the custom re-valve. Lead time may be longer if the required shock size needs to be ordered.

If you are unsure about shock length, send us your vehicle, lift, bumpstop arrangement, current open/closed lengths and intended use before ordering.

KINGPIN Custom-Height Front Shock Turrets

Front shock turrets made to suit your Land Rover suspension setup. More than 32 configurations are available; KINGPIN Fab will contact you after ordering to confirm the correct turret height.

Shock and height options

• Standard, +1-inch and +2-inch heights
• Options to suit Superior Engineering shocks from 8.5 to 13 inches
• Fox shock and custom-size options
• Available with or without an integrated dislocation cone

Mounting and cone position

• The upper shock mount is offset 10mm rearward
• The inbuilt dislocation cone is angled forward to improve clearance to the rear side of the spring

Provide your vehicle and shock details when ordering so we can confirm the suitable turret height and configuration before supply.

Australian-Made Upper Rear Pin-to-Pin Shock Mounts for Land Rover

These KINGPIN Fab upper rear shock mounts convert the listed Land Rover rear mounting arrangement to suit compatible pin-to-pin shocks. They are made in-house in Queensland using Australian materials.

This listing is for the shock mounts only; shock absorbers are selected separately unless included in a listed suspension package.

Vehicle applications

• Land Rover Defender 90, 110 and 130
• Land Rover Discovery 1
• Range Rover Classic

Matched long-travel suspension

On a matched Defender setup, these mounts are designed to accommodate selected long-stroke rear shocks with up to 11.5 inches of stroke without automatically requiring extended rear bump stops. Shock dimensions, ride height, spring, bump stops, axle travel and tyre clearance all affect the final result, so check the complete suspension setup before ordering.

Available in selected KINGPIN suspension packages

These mounts are also supplied in selected matched suspension packages:

• Tough Tourer Long-Travel Suspension Package
• Outback Tourer Suspension Kit
• Weekend Warrior Suspension Kit

Send us your vehicle model, suspension height and shock details if you want help checking compatibility before ordering.

DIY Rock Slider Bracket Kit for Defender 110/130 and Perentie

A laser-cut bracket kit for fabricating your own Land Rover rock sliders. Listed applications are Defender 110, Defender 130 and Perentie 4x4. Defender 90 is not listed; contact us to check availability.

What is included?

• Laser-cut front brackets, 8mm thick
• Laser-cut rear brackets, 10mm thick
• Fitting kit

What you supply

You supply the RHS tube and material to cap the slider ends. Choose the vehicle and any RHS size option shown in the product selector; check your tube dimensions before ordering.

These brackets give you the mounting components, while you fabricate the slider to suit your vehicle and preferred design. Contact KINGPIN Fab if you need help confirming the vehicle or RHS option.

HD FRONT SPRING LOWER COIL RETAINERS - Pair

• 5mm lazercut AUSSIE steel
• Suit Discovery 1, All Defenders, & RRC
• 3 stage POWDERCOATED coat, BLAST-PRIME-COAT

KINGPIN SOLID 4140 CHROMOLY TRACK RODS!!

These SOLID Chromoly track rods are the strongest bars available worldwide for your Landy, and have the added benefit of having a incredibly high amount of 'spring' in them due to the material properties.  It is almost common knowledge Land Rover likely designed/specc'ed the factory Track Rod design 30mins before knock off on a Friday arvo! Yer - really not to sure what on earth they were thinking!

Almost all other HD steering rods on the market are HI-Tensile Steel at 350mPa tensile strength, We are not knocking these at all - they are great!, and we also sell these.

Our solid Chromoly bars are 32mm 4140 Chromoly rated at a whooping 980mPa tensile strength

Also included with every KINPIN FAB Chromoly rod is a pair of KINGPIN Fab Extra HD Stainless steel HD Jam nuts!

Chromoly, compared to regular hi-tensile steel is better suited to spring back to its original shape rather than bending and then not returning back to its original shape.

If you want the strongest bar available...this is the one for you Wilco ;)

For heavy offroad use, we recommend using ONLY LEMFORDER tie rod ends with this product, due to the high quality of these joints and superior casting strength over cheaper ones. No point getting the strongest bar avail, only to skimp on the quality of your tie rod ends

***ALL BARS COME PRE-GREASED WITH COPPER OR NICKLE ANTI-SIEZE!***

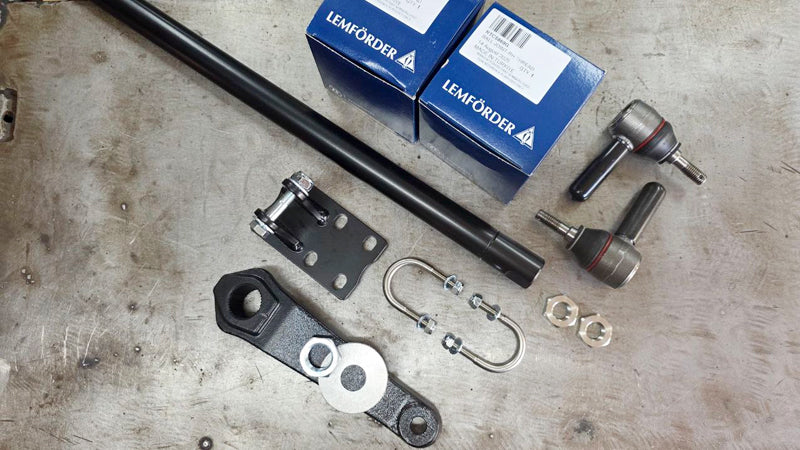

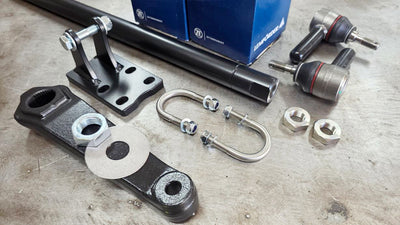

Discovery 1-Style Pitman Arm and Draglink Conversion for Defender

This conversion replaces the Defender pitman-arm and draglink arrangement with the listed Discovery 1-style setup.

Why owners choose this conversion

• Uses a standard tie-rod end at both ends of the draglink, which can simplify field repairs for touring vehicles
• Can help avoid binding at the Defender pitman-arm ball joint on suspension setups with increased articulation
• Provides an option for vehicles being set up with the Fox Racing steering damper kit

Part kits are available if you already have some of the required components. Contact KINGPIN Fab with your vehicle and current steering setup to confirm the correct option before ordering.

FRESHEN YOUR RIG UP WITH THESE HEX STYLE WINGTOP VENTS

BLAST-PRIME-COATED SATIN BLACK

SOLD AS PAIR

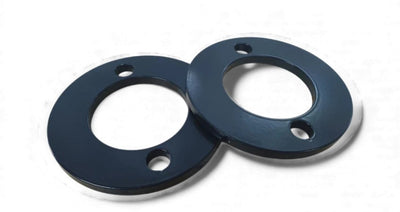

KINGPIN Coil Spring Lift Spacers / Shims

Simple solid-steel spring shims for fine-tuning ride height on Land Rover Defender, Discovery 1 and Range Rover Classic applications.

Available options

• 6mm shim — suits front or rear
• 10mm shim — rear only

Useful for correcting small left-to-right ride-height differences, compensating for accessory weight, or making small suspension-height adjustments without changing the main coil spring.

Finished in satin black powder coat.

Sold individually.

Multiple shims may be stacked where appropriate, but suspension geometry, bump-stop clearance and spring seating should always be checked through the full travel range.

Extra HD TOW/RECOVERY Points - MULTI FIT (Defender-Disco1-Disco2)

These Extra HD units are made with a whopping 16mm 350mPa grade CNC Plasma cut Aussie steel plate, that’s thicker than anything else on the market available for your Land Rover – Period!

We only recommend you install these items with NEW M12 - 12.9 Grade zinc plated bolts and nyloc nuts, AS WELL as installing the optional crush tubes into the upper chassis mount hole used by these brackets IF YOU PLAN ON DOING SNATCH RECOVERYS

If there is not a hole already and your bullbar does not also use this hole - you may not have a hole there at all! From the factory this upper hole was not present in Defenders.

We now offer custom made crush tubes than have been machined from 1” solid round steel to install into the upper bolt hole mount for those who plan to do snatch recoveries with these. We also recommend installing the 3^rd M12 bolt for good measure.

Installation of these optional crush tubs is fairly simple and only requires a 1” bi-metal hole saw, a welder, and a grinder.

ALWAYS use a bridle and BOTH mounts AND a rope dampener blanket when performing a recovery from the front end. Recovery’s can be fatal if not carried out correctly.

Please leave us a note at checkout if you have selected Powdercoated, with your colour choice. This will add up to approx 10-20 business days to your order to have them coated. Alternately we will send out BLACK powdercoated by default if you do not specify colour.

KINGPIN 7075 Alloy Adjustable Panhard Rod

Heavy-duty adjustable panhard rod for Defender, Discovery 1, Range Rover Classic, Perentie and County applications.

Designed for lifted vehicles where the front axle needs to be re-centred under the chassis, this panhard uses a solid 7075-T6 alloy bar with a chromoly heim joint at one end and a SuperPro bush at the chassis end.

Why this design?

• Solid 7075-T6 alloy bar, anodised black
• 7/8-inch chromoly three-piece heim joint
• Stainless high-misalignment spacers
• Machined bush housing
• SuperPro chassis-end bush to reduce noise, vibration and harshness compared with a heim joint at both ends
• Bolt-in replacement with no chassis modification required

Fitment

Suitable for selected Defender, Discovery 1, Range Rover Classic, Perentie and County applications.

Two chassis-bush sleeve sizes are available: 14mm and 16mm. As a general guide, earlier vehicles commonly use 14mm and later vehicles commonly use 16mm, but the safest option is to confirm the existing bolt size or provide your VIN before ordering.

Why an adjustable panhard?

Raising a Land Rover changes the lateral position of the front axle relative to the chassis. An adjustable panhard allows the axle to be re-centred after a suspension lift.

Off-road note: the heim-joint end is intended to provide freer articulation and reduced bind compared with a conventional rubber-bushed arrangement. This product is aimed primarily at serious off-road and modified suspension applications.

Compare adjustable panhard rod options

For another adjustable option, see the Tough Dog Heavy-Duty Adjustable Panhard Rod. Its vehicle selector covers selected Defender, Perentie, Discovery 1 and 2, and Range Rover Classic applications. For 2002 Defenders, provide the VIN so we can confirm the mounting-bolt configuration.

Again we have gone above and beyond with our HD Turret Retainer Rings

We have had countless requests for these as the std factory ones often break studs as they age, and even more so with quality shocks with firmer tunes than the factory items.

The usual offerings use a 4mm laser cut plate - we use 6mm, just to give that little bit more

Our studs are threaded into the flange ring itself, and then plug-welded from behind

***THESE ARE NOW COATED IN GOLD ZINC - NOT POWDERCOATED***

KINGPIN Fab decals!

Get your mitts on a pack today

KINGPIN Fab Fuel Filter Relocation Bracket

Needed when you fit ANY brand pin to pin rear shock mount to Td5 & Puma D90, D110 & D130 Defenders

Comes with fitting kit

This gear knob is designed to replace the oem gear knob that is prone to cracking. The design incorporates a lower profile that sits over/matches the existing gear lever shaft to prevent further cracking.

Modifications to the existing gear lever are required to fit our gear knob - see pic of modified gear lever for reference.

Machined from billet 6061 aluminium, then anodised black to protect from corrosion.

Proudly designed and manufactured in Brisbane, Australia!

This listing is for 1 gear knob, and includes grub screw to mount to existing modified gear knob assembly (allen key required for installation)

KINGPIN M57 Low-Profile A/C Compressor Bracket

Need more room on the right-hand side of your M57 engine bay? Move the A/C compressor closer to the engine block while retaining the BMW compressor.

For Land Rover Defender, Nissan Patrol, Toyota LandCruiser and other M57 swaps where compressor clearance is tight. Suitability depends on your engine, compressor and engine-bay layout; check the version and clearance requirements below.

The KINGPIN bracket replaces the factory BMW compressor bracket and moves the A/C compressor approximately 27mm closer to the engine, creating more clearance between the compressor and the Land Rover steering box.

Features

• Designed from 3D scan data for accurate belt alignment
• Powder-coated finish
• Fixing kit included
• Correct-length Gates Micro-V stretch belt supplied
• Compatible with the House of Torque engine mounts supplied by KINGPIN Fab
• Compatible compressor families include selected E53, E70, E83 and E60 applications

Choose the correct version

M57N version: moves the compressor inward by approximately 27mm. This version is for iron-block M57N applications and does not suit aluminium-block M57N2 engines.

M57N2 version: moves the compressor inward by approximately 27mm and approximately 30mm lower to improve intake-pipe / A/C-line clearance. This version can also be used on suitable iron-block M57N applications.

E90 turbo fitment note: E90 donor engines typically use the power-steering pump in the position where the A/C compressor would normally sit, so the complete E90 accessory layout is different. However, an E90-spec M57N2 turbo can still be fitted to another M57N2 conversion. When this turbo is used, its electronic VNT actuator sits further down and closer to the turbo outlet than the E60/E70 arrangement. In that situation, when used with our low-profile A/C bracket, our VNT turbo actuator spacer kit is required to move the actuator away and avoid fouling.

Defender clearance requirements

• M57N2 setup: harmonic balancer to inside of passenger-side chassis rail must be approximately 260mm or less
• M57N setup: harmonic balancer to inside of passenger-side chassis rail must be approximately 270mm or less

A stretch-belt fitting tool is required for installation.

Contact us before ordering if you are using a Pace Automotive Land Rover adapter.

Common questions before ordering

Can I use it in an M57-swapped Patrol or LandCruiser?

This bracket addresses compressor clearance at the engine. A Patrol, LandCruiser or other swap still needs an individual check of engine position, compressor type, chassis and steering clearance, belt alignment and A/C hose routing. The Defender measurements above are not a universal fitment test for other vehicles.

Patrol note: we have had a Patrol owner report that fitting the M57N version gave noticeably more clearance around the brake-line tab area. This may be useful on Patrol conversions where the standard compressor position is tight, but the result will depend on the engine position and mount kit being used. Send us photos and your mount setup if you want us to help check clearance before ordering.

What should I check before installation?

Identify your engine version and compressor before choosing the bracket. Have the required stretch-belt fitting tool available and check the current fitting instructions for your supplied kit before installation. If your engine casting or mounting arrangement differs, contact us before making modifications.

Not sure which version to choose?

Send KINGPIN your vehicle, engine version and compressor details, along with clear photos of the compressor side of the engine and the clearance you need. We can help check the application before you order.

KINGPIN Double-Shear Steering Damper Bracket

A 10mm steel double-shear bracket for selected Land Rover steering conversions and damper relocations.

Applications

• Defender and Perentie fitted with a Discovery 1 drag-link conversion
• Discovery 1 relocating the steering damper from the track rod to the front drag link

Included hardware

• 10mm steel bracket
• Stainless-steel M8 U-bolts
• High-tensile zinc-plated M10 bolt

Check the steering linkage and damper arrangement on your vehicle before ordering. Contact KINGPIN Fab if your setup differs from the listed applications.

WANT THE NEATEST SOLUTION TO MOUNTING YOUR SHOCK RESI'S? - LOOK NO FURTHER...

• Universal front shock turret resi mount

• will require drilling two small hole sin the front face of the shock turret
• For Superior shocks - use the small nuts and bolts in the resi fitting kit to secure this bracket to the front face of the turret
• Also use the rubber half moons supplied in the Superior resi fitting kit
• Can also be used for KING & Fox 2.0 smoothies

HOSE IS ROUTED TO THE REAR OF THE TURRET WITH THIS MOUNTING KIT - WHERE AS WITH THE UNIVERSAL SUPERIOR KIT THE HOSE IS ROUTED TO THE FRONT

Australia's best Defender StepSlider!

These StepSliders are also built TOUGH! ...So tough...they can easily support the whole weight of one side of the truck on them! Try doing that with mass produced imports!
Have the superior protection of our rock sliders, with the added benefit of a step or more width to help protect those doors from rocks, trees and other hazards coming from the side, well as something to help your better half get into your pride and joy.

TWO Options with he aluminum checkerplate tops...
*Raw aluminum
*Special very fine textured scratch resistant satin black coating

We coat these top plates with a special fine textured scratch resistant powder coating to the laser cut top plates. Satin black powder coat to the main slider assembly. The Aluminum is chromate dipped before undergoing zinc primer and top powdercoats to ensure superior adhesion not found in mass produced steps or sliders.

CAD DESIGNED

SliderSteps built tough like no other

• 4mm wall Aussie RHS for the main slider
• 4mm wall Aussie RHS to the step area
• 10mm thick laser cut rear brackets
• 8mm thick front brackets
• Laser cut Aluminum top plates with "KINGPIN' inlay
• Raw Aluminium or black rivets...your choice
• M12 Hi-Tensile fitting hardware
• Fitting instructions included

Most Sliders are custom made to order with a 2-25day turnaround depending on what your after.



11/16-16 JAM NUTS FOR LAND ROVER PERENTIE, COUNTY, DEFENDER, DISCOVERY 1 & RRC TRACK ROD AND DRAGF LINKS

306 STAINLESS STEEL IN AN EXTRA HD 31mm OUTER OD AND 12.5mm WIDTH!

Custom front coils for Defender 110

Spring rate: 165 lb/in (linear). Free heights: 455/460 mm.

Made by Dobinsons Springs to KINGPIN Fab specifications.

On a Defender 110 with a bull bar and synthetic-rope winch, these springs provide an approximate loaded height of 310 mm (approximately 2 inches of lift), based on a vehicle with approximately 1,280 kg front axle weight.

These longer linear coils suit setups using Superflex arms and 12-inch-plus shocks, helping the spring remain inside the built-in dislocation cone. They are particularly suited to our Weekend Warrior kit. The softer rate allows greater compression than a shorter, stiffer coil offering equivalent lift.

For off-road setups, a softer front coil combined with a retained rear end encourages front articulation. They also suit comfort touring or road driving with front and rear swaybars.

If you would like to sleeve your own casing we can supply the steel bush.

We would suggest an interference fit of 0.02mm and also use ‘bearing fit’ or similar.

The hole that supports the head of the intermediate pin in the LT230 casing is prone to wearing, and the pin elongates the hole so that it is out of round.

This can lead to a transfer case whine, and an oil leak.

These are a stepped bush, and machined from EN24T steel.

This will now have a longer life than the original housing, as the pin is now supported in the steel bush.

Australia's most popular Defender Rockslider!

If you are on a budget or just prefer something a little more subtle, but still want that piece of mind that your truck is going to be protected...These Sliders are built TOUGH! ...So tough...they can easily support the whole weight of one side of the truck on them. Try doing that with mass produced imports!

• Rocksliders built tough to take anything you can throw at them
• 4mm wall Aussie RHS for the main slider
• 10mm thick laser cut rear brackets
• 8mm thick front brackets
• M12 Hi-Tensile fitting hardware
• Fitting instructions included
• Most importantly your supporting local Aussie business, and not mass Chinese manufactured brit imports!

Most Sliders are custom made to order with a 2-25day turnaround depending on what your after. We will be in contact with you within 24hrs after placing an order to touch base with you



WANT AN EASY NEAT SOLUTION TO MOUNTING YOUR SHOCK RESI'S? - LOOK NO FURTHER...

• Puma's - this bracket uses the supplied bolts to fit right up to existing threaded bosses.
• Perentie/pre-Puma Defender/County - you will need to use M10 Nutserts/Rivnuts to fit
• Laser cut and 3-stage powdercoated
• NOT suitable for Disco1, Disco 2 etc
• Also designed for use when the resi cannot be mounted on top of a upper spring retainer plate - if you don't have retainers in your suspension kit (ideal for our OUTBACK TOURER KIT)

KINGPIN SOLID 4140 CHROMOLY TRACK RODS!!

These SOLID Chromoly track rods are the strongest bars available worldwide for your Landy, and have the added benefit of having a incredibly high amount of 'spring' in them due to the material properties.  It is almost common knowledge Land Rover likely designed/specc'ed the factory Track Rod design 30mins before knock off on a Friday arvo! Yer - really not to sure what on earth they were thinking!

Almost all other HD steering rods on the market are HI-Tensile Steel at 350mPa tensile strength, We are not knocking these at all - they are great!, and we also sell these.

Our solid Chromoly bars are 32mm 4140 Chromoly rated at a whooping 980mPa tensile strength

Also included with every KINPIN FAB Chromoly rod is a pair of KINGPIN Fab Extra HD Stainless steel HD Jam nuts!

Chromoly, compared to regular hi-tensile steel is better suited to spring back to its original shape rather than bending and then not returning back to its original shape.

If you want the strongest bar available...this is the one for you Wilco ;)

For heavy offroad use, we recommend using ONLY LEMFORDER tie rod ends with this product, due to the high quality of these joints and superior casting strength over cheaper ones. No point getting the strongest bar avail, only to skimp on the quality of your tie rod ends

***ALL BARS COME PRE-GREASED WITH COPPER OR NICKLE ANTI-SIEZE!***
